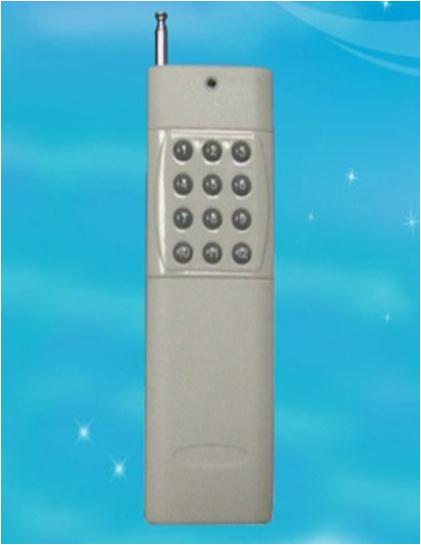

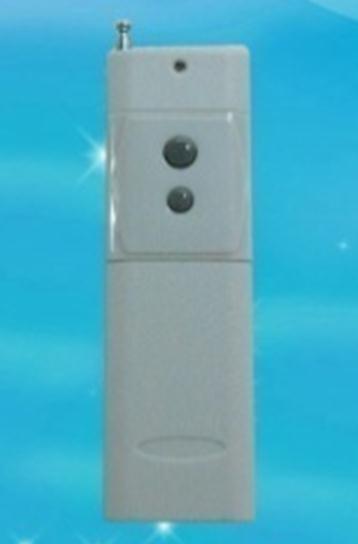

RF Wireless Transmitter - Range 3 Kilo Meter
PLOT NO: 4158, FIRST FLOOR, T.N.H.B, AYAPAKKAM, CHENNAI - 600077, TAMILNADU, INDIA. CONTACT PH.NO: 9840292883; CLICK CONTACT TAB FOR MORE
This RF wireless Transmitters has the stable performance, high confidentiality, Large memory, low power consumption. Since these tranmsitter has the
learning code option it is very easy to pair these tranmsitters with any of the wireless realy and it gives error free operation.
Application:
1. Remotely Start/Stop, On/Off any electrical equipment
2. Can be used in Safety System.
3. Can be used to automate the home/office/industrial euipments
1. Remotely Start/Stop, On/Off any electrical equipment
2. Can be used in Safety System.
3. Can be used to automate the home/office/industrial euipments
Specification:
1. Operating Frequency : 433MHz
2. Operating Voltage : DC9V
3. Operating current : = 85mA
4. Transmitting power : <1w
5. Transmitting distance:3000(open space , receiving sensibility : -108dBm)
6. Frequency deviation: ± 0.2MHz
7. Data rate: 3-6K
8. Encoding chip : PT2262, EV1527
1. Operating Frequency : 433MHz
2. Operating Voltage : DC9V
3. Operating current : = 85mA
4. Transmitting power : <1w
5. Transmitting distance:3000(open space , receiving sensibility : -108dBm)
6. Frequency deviation: ± 0.2MHz
7. Data rate: 3-6K
8. Encoding chip : PT2262, EV1527
