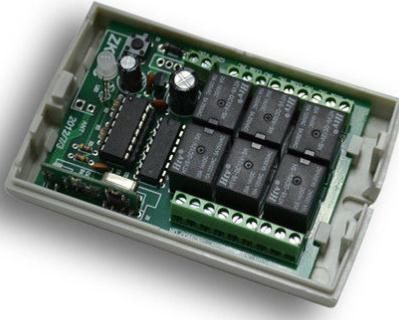

RF Wireless Smart Relay with Six Relay Change Over - 6 NO & NC
PLOT NO: 4158, FIRST FLOOR, T.N.H.B, AYAPAKKAM, CHENNAI - 600077, TAMILNADU, INDIA. CONTACT PH.NO: 9840292883; CLICK CONTACT TAB FOR MORE
This wireless receiving controller, high confidentiality, Large memory, stable performance, low power consumption, convenient using , without using traditional
jumpers or switches coding, just make the receiving controller receive and save the signals from wireless remote control, then they can be realized to use
together . If the learned control is lost in using process, just clear the information stored in the controller, the loss of remote control cannot control the receiving
controller , must learn once again before using.
Specification:

1. Encoding Type: Learning code(EV1527)
2. Operating frequency: 433.92MHZ
3. Adjustable frequency: 270-390 MHz or 390-450MHz
4. Operating voltage: DC12V
5. Modulation mode: ASKQuiescent current: 0uA
6. Operating Current: <35mA
7. Encoding Type: Learning code
8. Operating temperature: -20 C ~ +50 C

Application:

1. Remotely Start/Stop, On/Off any electrical equipment
2. Can be used in Safety System.
3. Can be used to automate the home/office/industrial euipments
