GSM RTU:
PLOT NO: 4158, FIRST FLOOR, T.N.H.B, AYAPAKKAM, CHENNAI - 600077, TAMILNADU, INDIA. CONTACT PH.NO: 9840292883; CLICK CONTACT TAB FOR MORE
GSM RTU:

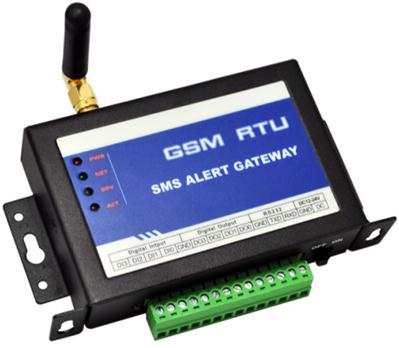

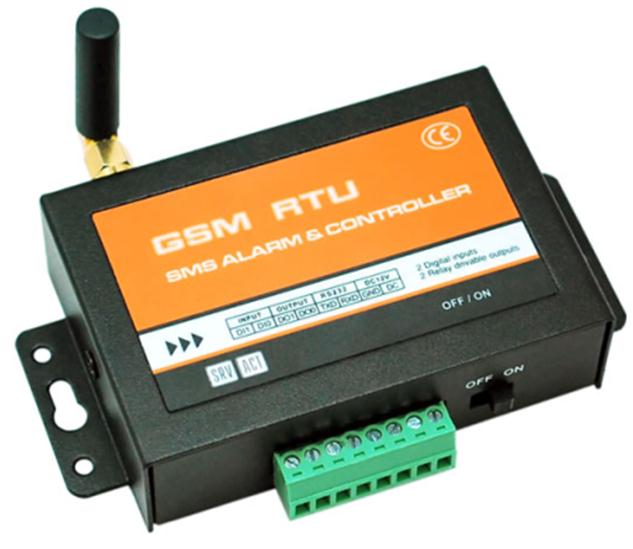

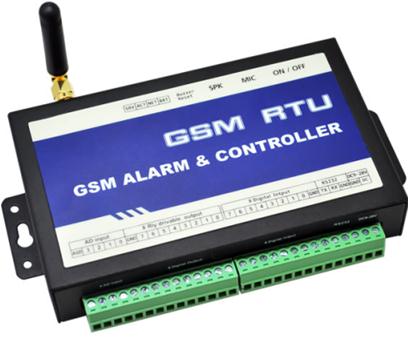

GSM RTU is designed as a cost effective remote control system alert device. It monitors the discrete inputs and control the outputs based on the configuration. User-defined SMS is sent to pre-configured mobile phone numbers when a pre-defined alarm condition happens. These pre-configured mobile phone numbers can belong to technicians or engineers who are responsible in handling corresponding alarms. With the aid of this GSM RTU, the alarm condition brings attention to in-charge personnel immediately. Besides it allows those mobile phone users to trigger any relay output by using SMS. The output can be connected with alarm indication device, such as alarm, and others.
There is a built-in microprocessor chip running on a real-time operating system. It gives immediate response to any change in inputs and outputs condition. A GSM modem is embedded in the GSM RTU, user has to subscribe a SIM card for the GSM RTU. The GSM RTU can be installed in any location under GSM coverage.
There is a built-in microprocessor chip running on a real-time operating system. It gives immediate response to any change in inputs and outputs condition. A GSM modem is embedded in the GSM RTU, user has to subscribe a SIM card for the GSM RTU. The GSM RTU can be installed in any location under GSM coverage.
Feature
1. Configurable for alarm and recover sms either by the software supplied along with the device or by simple SMS
2. Automatically report the status of itself on schedule
3. Support remote setting via sms commands
4. Preset 10 phone numbers(can be distributed authority)
5. Remote add/edit/delete phone group
6. Automatically update internal clock via sms
7. Time stamped in alarm or recover messages
8. Support ring call when alarm
9. Temperature sensor (optional)
10. Internal battery (optional)
11. Easy used GUI configure software
12. Adopted highly integrated industrial CPU
13. Reliable performance with built-in double watchdog
14. Low maintenance, 24×7 operation
